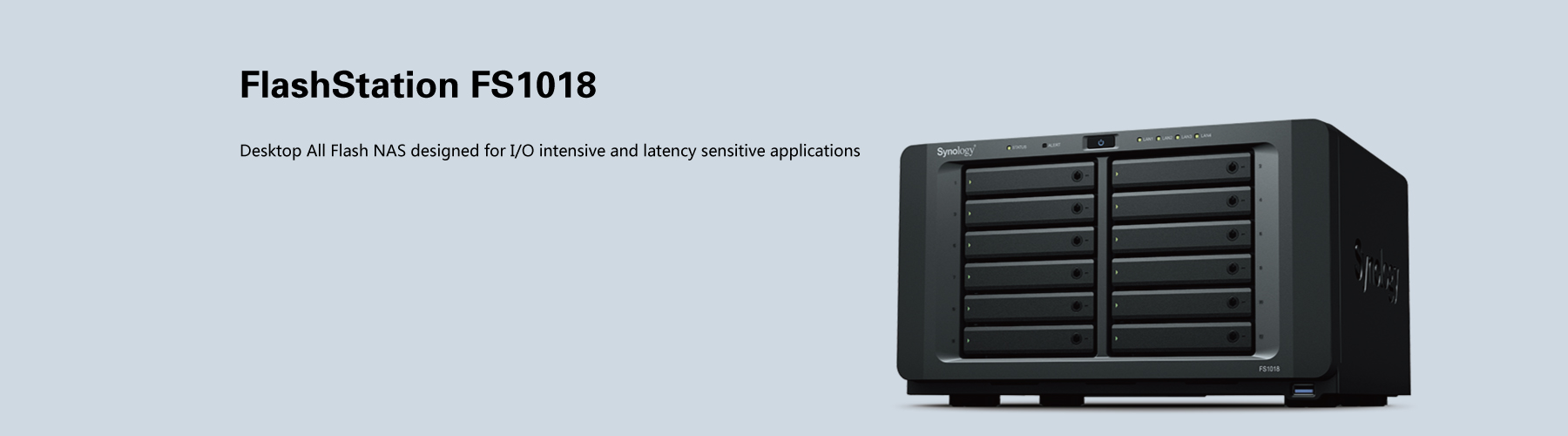

FS1018
      The all-flash FS1018 is available in a desktop form factor and supports up to 12 2.5” SATA SSDs. Provides high IOPS for demanding work environments. Ideal for running business applications, virtualization and latency-sensitive applications.

      Application Field

      Ideal for running business applications such as mail services, virtualization, and latency-sensitive applications.

      Product Features



      Extraordinary performance but lightweight


      The all-flash FS1018 is available in a desktop form factor and supports up to 12 2.5” SATA SSDs. Low latency, available

      Provides high IOPS for demanding work environments. Ideal for running business applications such as mail services, virtualization, and latency-sensitive applications.


      CPU: Dual core turbo frequency acceleration up to 2.6 GHz

      Memory capacity: 8GB DDR4 ECC RAM, up to 32GB

      High performance: over 40,000 times iSCSI 4K random write IOPS

      Scalability: Up to two DX1215 expansion units can be connected





      Expand storage capacity and accelerate performance


      Four built-in Gigabit LAN ports allow the FS1018 to perform Link Aggregation and failover.

      For environments that require high-speed transmission, adding an Ethernet add-on card can increase the data transfer speed to 10GbE.



      GuangZhou Tian Ao Information Technology Co., Ltd.






      5 year warranty


      We are committed to improving product innovation and quality, and Synology guarantees a robust and reliable number with a 5-year limited warranty service.

      Based on the management experience, it provides responsive technical support and hardware replacement services to maximize return on investment.


      GuangZhou Tian Ao Information Technology Co., Ltd.





      RAID F1


      Due to the particularity of SSD and RAID technology, one of the common challenges currently facing is how to prevent all drives from being evenly loaded.

      Assigned and failed at the same time. RAID F1 mitigates this by using a specially designed algorithm to distribute the load to the drive in an unbalanced manner.

      One problem, which not only improves the storage capacity of the storage pool, but also ensures the security of the data.



      GuangZhou Tian Ao Information Technology Co., Ltd.





      Next-generation file system for data protection


      The Btrfs file system uses more advanced storage technology. Prevent data corruption and reduce with optimized snapshot technology

      Maintenance costs. Btrfs leverages flexible and efficient data protection and recovery tools while ensuring data integrity.


      The shared folder and user quota system is flexible, providing full quota control over user accounts and shared folders

      Snapshot Replication provides data protection that can be scheduled and saves storage capacity. Supports 1,024 shared folder backups and 65,000 system-wide snapshots

      Ability to restore data at the file or folder level for faster data recovery and flexibility

      Automatic self-healing file capability detects and recovers damaged files without user intervention


      GuangZhou Tian Ao Information Technology Co., Ltd.





      Virtual Machine Manager


      Virtual Machine Manager lets you test new software in the sandbox, isolate the customer's machine, and increase the server's

      flexibility. It's easy to run Windows, Linux, and Virtual DSM on your Synology NAS in just a few steps.





      Certified storage virtualization solution


      Synology iSCSI storage fully supports most virtual solutions, and an easy management interface increases productivity.

      The integration of VMware vSphere 6 with VAAI helps offload storage operations and optimize computing efficiency.

      Windows Offloaded Data Transfer (ODX) can greatly increase data transfer and migration rates.

      Synology NAS supports OpenStack Cinder and can be used as a block class storage component.




      GuangZhou Tian Ao Information Technology Co., Ltd.GuangZhou Tian Ao Information Technology Co., Ltd.



      1
      Status Indicator
      2
      Alert indicator
      3
      Hard disk status indicator
      4
      Hard disk tray lock
      5
      Power button and indicator
      6
      Network indicator
      7
      USB 3.0
      8
      fan
      9
      power supply
      10
      Kensington Security Slot
      11
      expansion
      12
      1GbE RJ-45 network
      13
      PCIe 3.0 slot
      14
      USB 3.0
      15
      Reset button

      Operating System

      Snapshot Replication Timed, real-time data protection ensures that shared folders and iSCSI LUNs are still available in the event of a disaster.
      More
      Synology MailPlus Create a secure, reliable private mail server with a intuitive, intuitive user interface.
      More
      Synology High Availability When a server fails, it seamlessly transitions between clustered servers to minimize the impact on the application.
      More
      Hyper Backup Block-level incremental backups, as well as inter-version deduplication, let you store multiple backup versions.
      More
      Management System Improve management efficiency and resiliency by managing multiple Synology NASs simultaneously through a centralized interface.
      More
      Cloud Station Automatically synchronize cross-platform data and import file versioning.
      More

      Technical Specifications

      Product Model FlashStation FS1018
      CPU Intel Pentium D1508
      CPU Type 處理器架構:64-bit
      處理器頻率:雙核心 2.2 (基準) / 2.6 (睿頻) GHz
      SATA 2.5" SATA SSD
      RAM 8 GB DDR4 ECC SO-DIMM
      RAM Type Synology 保留根據供應商產品供貨情況,更換相同或更高頻率內存模塊的權利。其兼容性和穩定性都經過相同嚴格的測試檢驗,請用戶放心使用。
      請選擇 Synology 內存模塊以獲得更好的兼容性和可靠性。如在內存擴充時使用了非 Synology 內存模塊,Synology 將不會提供全面的產品保證或技術支持。
      RAM Characteristics 預安裝內存模塊:8 GB (8 GB x 1)
      內存 可擴充至:32 GB (16 GB x 2)
      Number Of RAM Slots 2
      Internet 4 (支持 Link Aggregation / 故障移轉)
      Power Supply 250W
      Voltage 100 V 至 240 V AC
      Power Supply Ccharacteristics 電流頻率:50/60Hz, 單頻
      Storage Function 最大存儲空間數:1,024
      最大 iSCSI Target 數:256
      最大 iSCSI LUN 數:512
      Storage Management 1,024
      Storage_device RAID F1
      Basic
      JBOD
      RAID 0
      RAID 1
      RAID 5
      RAID 6
      RAID 10
      File System 內部磁盤:Btrfs/EXT4
      外接磁盤:
      Btrfs
      EXT4
      EXT3
      FAT
      NTFS
      HFS+
      exFAT*
      PCI-E 1 x Gen3 x8 slot (x8 link)
      FPS H.264 2250 FPS @ 720p (1280x720)
      1050 FPS @ 1080p (1920x1080)
      600 FPS @ 3M (2048x1536)
      450 FPS @ 5M (2591x1944)
      320 FPS @ 4K (3840x2160)
      FPS MJPEG 600 FPS @ 720p (1280x720)
      360 FPS @ 1080p (1920x1080)
      240 FPS @ 3M (2048x1536)
      192 FPS @ 5M (2591x1944)
      Shape Appearance 166 mm x 282 mm x 243 mm
      Max Connections 40
      Certification EAC
      VCCI
      RCM
      KC
      FCC
      CE
      BSMI
      Surroundings 符合 RoHS 標準
      Temperature 工作溫度:5°C 至 40°C (40°F 至 104°F)
      存儲溫度:-20°C 至 60°C (-5°F 至 140°F)
      相對濕度:5% 至 95% RH
      Dimensions 166 mm x 282 mm x 243 mm
      Optional 監控裝置授權
      D4ECSO-2400-16G DDR4 ECC SO-DIMM*
      擴充設備: DX1215 X 2
      Synology 以太網適配器 E10G17-F2
      Synology 以太網適配器 E10G18-T1
      Synology 以太網適配器 E10G18-T2
      Synology M2D18 M.2 SSD 適配器卡
      VS360HD
      VS960HD
      Weight 5.2 公斤
      Warranty 5年
